Economical 4-Digit Dual Display PID Temperature Controller
TX4 Series

Economical 4-Digit Dual Display PID Temperature Controller

TX4 Temperature Controller, economical 4-digit dual-display PID temperature controller with 50ms high-speed sampling period and ±0.5% display accuracy. 50mm depth, exquisite design supports more installation environments and ideal temperature control in various applications.

Main features Selection Technology Application Download Question Video

Main features

· Compact, space-saving design with 50mm depth:30% rear-length size reduction compared to similar-sized models from Sinny

· Shell made of Japan's high-grade PC material, V-0 flame retardant grade

· Thermocouple / RTD input switch function available

· Fahrenheit / Celsius unit switch function available

· Switch between Relay output and SSR drive output

· Enhanced PID+ control algorithm

· Automatic calculation function

· Display error correction function

· Heating/cooling mode selectable

· 12 alarm modes selectable


LED display

LED display

Diameter depth 50mm

Diameter depth 50mm

TC / RTD input switch

TC / RTD input switch

Temperature unit switch

Temperature unit switch

Relay / SSR output switch

Relay / SSR output switch

PID+ control

PID+ control

Auto tuning

Auto tuning

Display error correction

Display error correction

Heating/cooling mode   select

Heating/cooling mode select

12 alarm modes select

12 alarm modes select

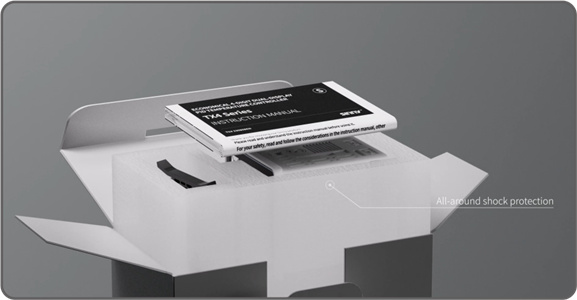

  • All-round protection

    Safe and secure

    All-round protection
  • Diameter depth 50mm

    Space-saving

    Diameter depth 50mm

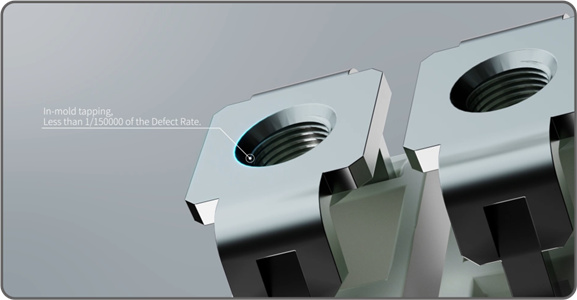

  • In-mold tapping process

    Slip rate as low as 1 in 150000

    In-mold tapping process
  • Zinc-nickel alloy salt spray 700H

    Fulfillment of anti-corrosion needs

    Zinc-nickel alloy salt spray 700H

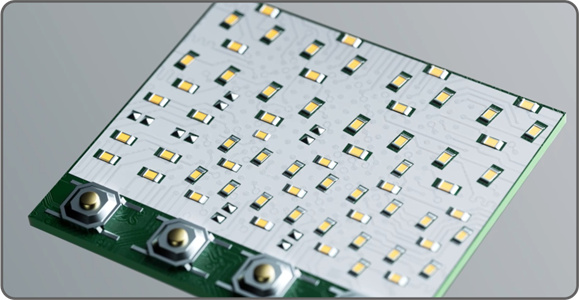

  • High-grade LED lamp beads

    100,000 hours of light decay less than five thousandths

    High-grade LED lamp beads
  • Relay /SSR output switching

    Flexible

    Relay /SSR output switching

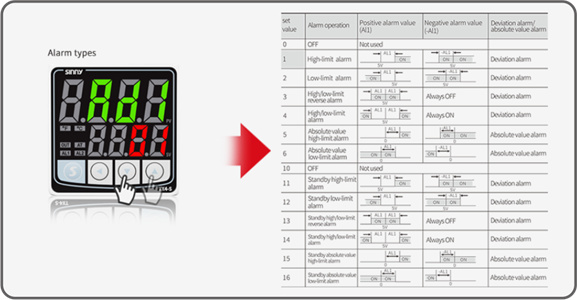

  • 12 alarm modes are available

    Meet the requirements of different working conditions

    12 alarm modes are available
  • TC/RTD input switch

    Covers common input types

    TC/RTD input switch

Selection


Product

  • S
  • H
  • M
  • W
  • L
  • S
  • H
  • M
  • W
  • L

Specifications


Application

Question

  • Q

    [TX4] How to Switch Relay/SSR Outputs

    A

    Quick switching by shortcut keys:

    In the operation mode

    Press and hold the "↓" and "↑" keys simultaneously for 3 seconds.

  • Q

    [TX4] How do I modify the input type?

    A

    Please operate as follows:

    1. Hold the "SET" key for 2s,The [P-1] page appears, press the "↑" key once, and the [P-2] page appears.

    2. In [P-2], press the "SET" key once, the input specification [INP] page appears, adjust it with the "↑" and "↓" keys.

    After adjusting, hold the "SET" key for 3s to save the parameter and return to run mode.


  • Q

    [TX4] What is the error code for 'HHHH' or 'LLLL'

    A

    Check the following conditions:

    1. whether the input sensor is damaged

    2. whether the input wiring is correct

    3. Whether the input type of the controller [INP] is matched with the sensor

    4. Whether the error correction [EC] parameter is set correctly

    5. Whether the parameters of the lower range limit [SLL] and upper range limit [SLH] are set correctly.
